Hollow core MGO sandwich panel

Home > product > Hollow core MGO sandwich panel

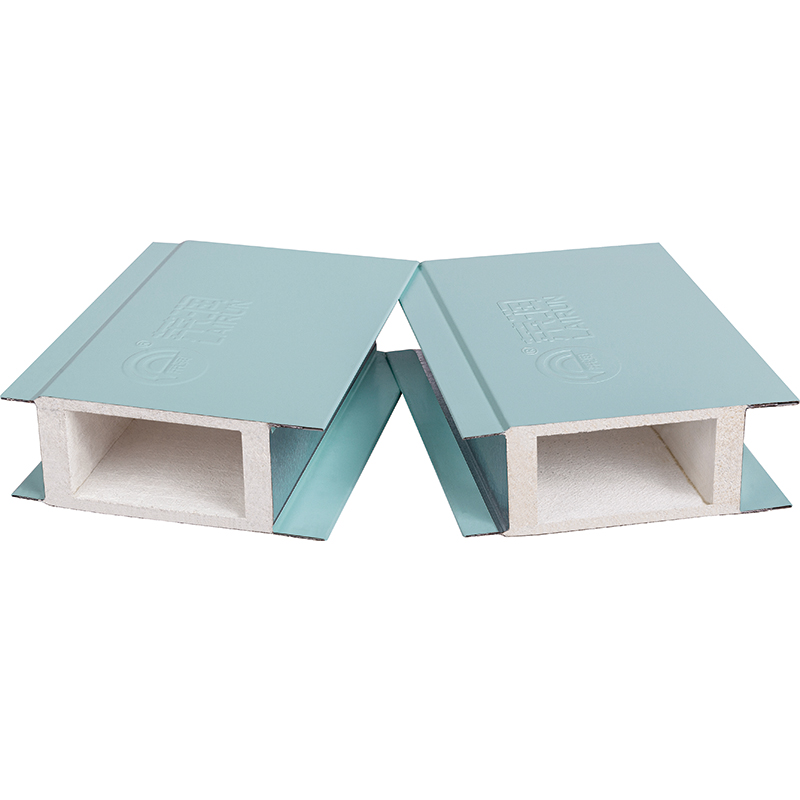

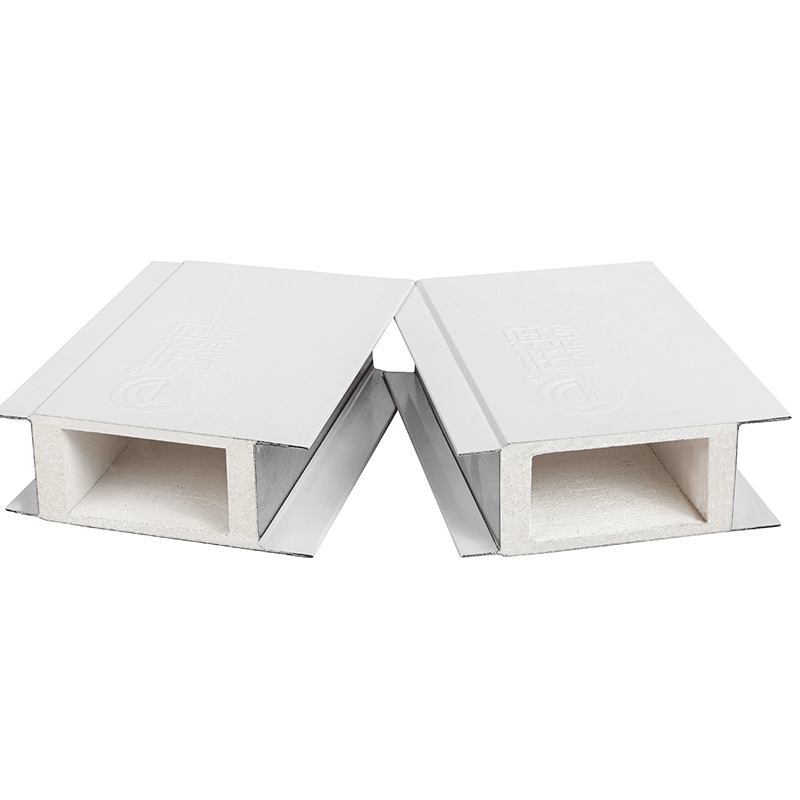

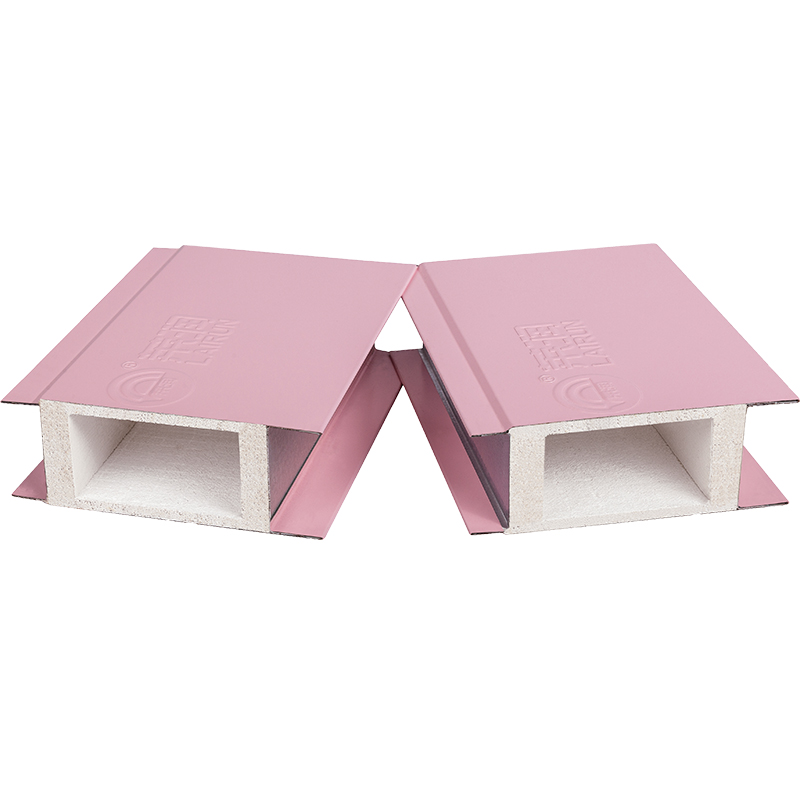

Hollow core MGO sandwich panel
Product Features:
The surface of LAIRUN's steel purification glass magnesium sandwich panel is coated with antibacterial and antistatic polyester resin, fluorocarbon resin, or silicone resin. The metal surface can be made from materials such as galvanized steel, 304# stainless steel, aluminum-manganese-magnesium alloy, or aluminum plate. As a result, the panels offer excellent properties, including rust resistance, ease of cleaning, acid and alkali resistance, fire resistance, sound insulation, thermal insulation, antibacterial performance, high strength, easy installation, no halogen return, corrosion resistance, explosion resistance, high-temperature resistance, aging resistance, and exceptional durability. Additionally, the material is eco-friendly, non-toxic, and free from pollution.
LAIRUN has introduced structural innovations to its steel purification glass magnesium sandwich panel. First, the spacing between hollow sections has been reduced from 150mm to 95mm. Second, the panel's core material adopts a male-and-female tenon interlocking connection method for head and tail joints. After over four years of usage testing, these improvements have successfully resolved issues such as halogen return, surface wrinkling, and uneven waves. They have also addressed the challenge of insufficient strength for ceiling installations.
Specifications

Effective width: 1150mm,950mm

Thickness: 50mm、75mm、100mm、125mm、150mm、175mm、200mm or customized

MGO Board thickness: Top&Bottom is 5mm+5mm; Middle is 12mm for each pc.

Length: It can be made as user’s requirement(normal≤6000mm)

Surface metal: can be selected from galvanized steel sheets, stainless steel sheets, aluminum alloy sheets, aluminum-magnesium-manganese sheets, or inorganic pre-coated boards.
And the surface treatment options include advanced polyester resin, fluorocarbon resin, high weather-resistant resin, and other baked enamel finishes.

Product color: Grey,ivory white,navy,blue dream,but any custom color according to customer’s requirements.

Mounting structure: Tongue and groove jointing

Applicable industries: Moistureproof, anticorrosive, radiation protection, fire prevention, sound insulation, heat insulation
