MGO rock wool sandwich panel

Product Features:

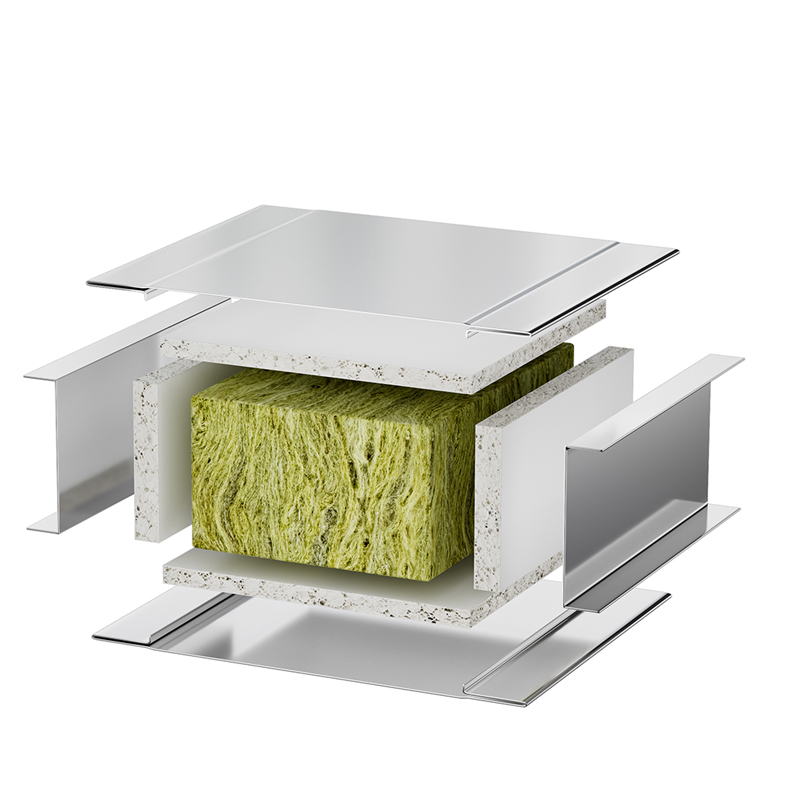

LAIRUN tongue-and-groove rock wool glass magnesium purification board is suitable for projects with high requirements for fire protection. The rock wool fibers are perpendicular to the metal panel, and the high-density strip rock wool is staggered along the length of the board, ensuring that the machine-made glass magnesium rock wool sandwich panel has good load-bearing capacity. The rock wool core material is A1 grade non-combustible material, so the rock wool sandwich panel has a fire resistance of more than 1000 degrees. The fire protection time of 50mm thick is 74 minutes, and the sound insulation effect meets ISO717/82&UNI18270/7 standards.

Online Message Get a Quote

Specifications

Effective width: 1150mm，950mm

Thickness: 50mm、75mm、100mm、125mm、150mm、175mm、200mm or customized

Rock Wool Density: 60kg/m³、80kg/m³、100 kg/m³、120kg/m³, or customized

MGO Board thickness: Top&Bottom is 5mm+5mm; Middle is 12mm for each pc.

Length: It can be made as user’s requirement(normal≤6000mm)

Applicable core material: Rock wool is made of basalt as the main raw material, which is melted at high temperature and made by high-speed centrifugal equipment.

Surface metal: can be selected from galvanized steel sheets, stainless steel sheets, aluminum alloy sheets, aluminum-magnesium-manganese sheets, or inorganic pre-coated boards. And the surface treatment options include advanced polyester resin, fluorocarbon resin, high weather-resistant resin, and other baked enamel finishes.

Product color: Grey,ivory white,navy,blue dream,but any custom color according to customer’s requirements.

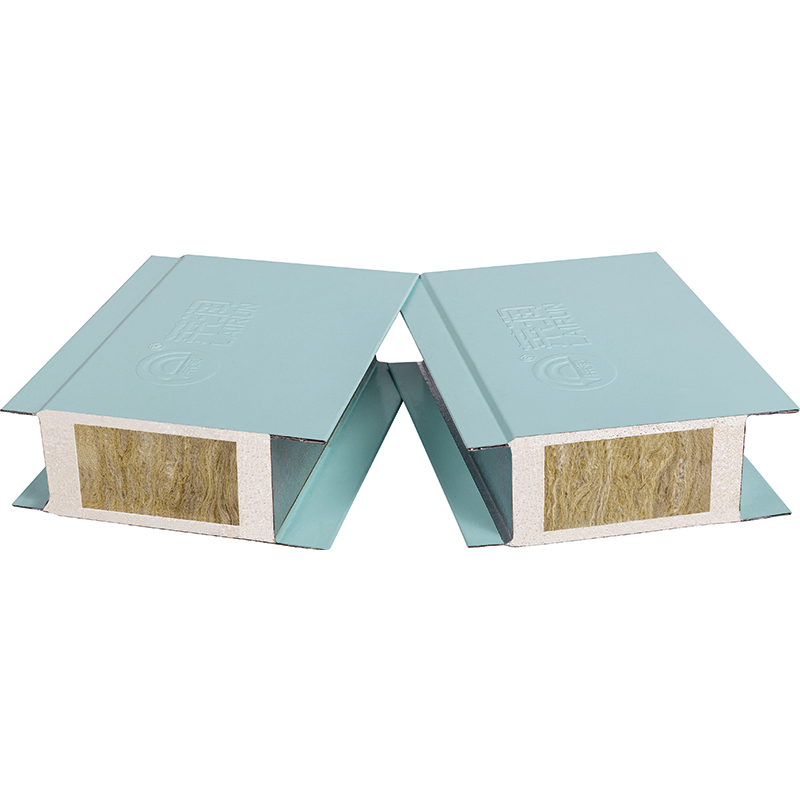

Mounting structure: Tongue and groove jointing

Applicable industries: Moistureproof, anticorrosive, radiation protection, fire prevention, sound insulation, heat insulation
