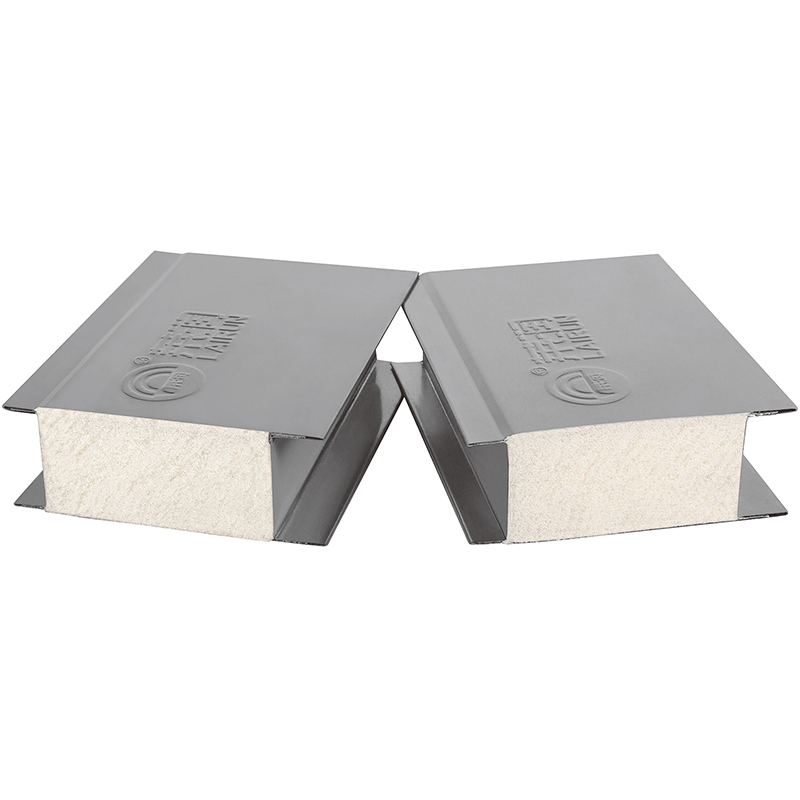

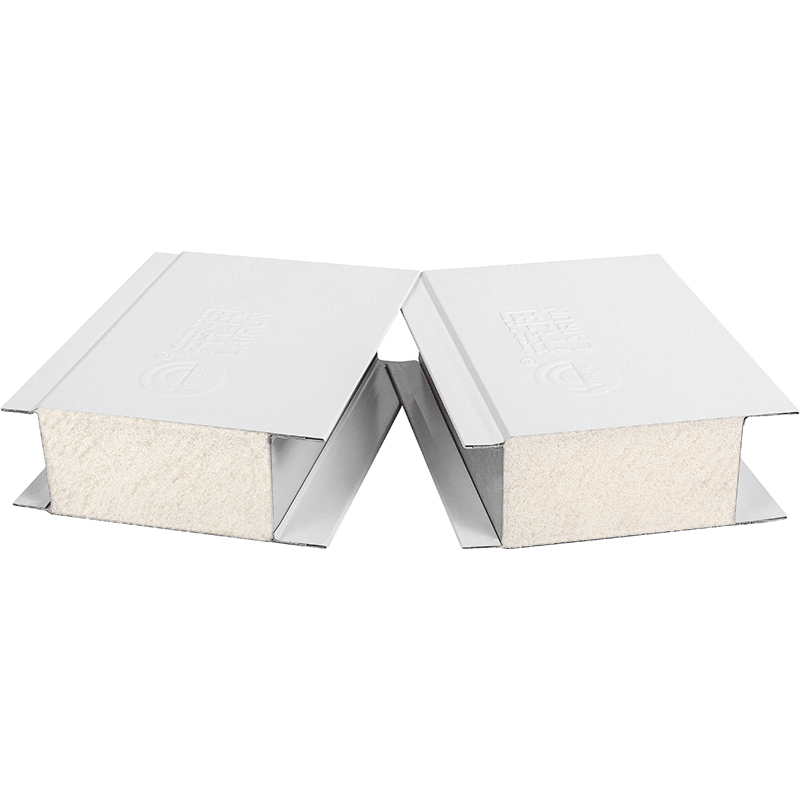

PU sandwich panel
Product Features:
Structure of concave and convex chamfer,improve the insulation plate the joint air tightness, designed for cold storage,warehouse.
Plate uniform solid,excellent insulating performance,waterproof performance.
Light weight,beautiful appearance,effectively solve the temperature refrigeration industry.
Within a module,the library body length,width and height on three directions free of change,can be in accordance with the need to expand or narrow,also can be assembled plate apart,different reload,installation simple and fast.
Specifications

Effective width: 1150mm,950mm

Thickness: 50mm、75mm、100mm、125mm、150mm、175mm、200mm or customized

Length: It can be made as user’s requirement(normal≤6000mm)

Applicable core material: Polyurethane (PU) core material in sandwich panels offers excellent thermal insulation with low thermal conductivity and high closed-cell rate, making it highly effective for temperature control. It provides strong fire resistance with flame-retardant properties and forms a carbonized protective layer under heat.

Polyurethan(PU) Density: 35kg /m³,40kg /m³ or customized.

Surface metal: can be selected from galvanized steel sheets, stainless steel sheets, aluminum alloy sheets, aluminum-magnesium-manganese sheets, or inorganic pre-coated boards. And the surface treatment options include advanced polyester resin, fluorocarbon resin, high weather-resistant resin, and other baked enamel finishes.

Product color: Grey,ivory white,navy,blue dream,but any custom color according to customer’s requirements.

Mounting structure: Tongue and groove jointing

Product performance: Rust,scrub resistance,acid and alkali resistance,fire prevention,sound insulation, thermal insulation and other performance.
