Silica rock sandwich panel

Home > product > Silica rock sandwich panel
Silica rock sandwich panel
Product Features:
Silica rock sandwich panel feature surfaces coated with high-quality polyester resin, fluorocarbon resin, and high weather-resistant resin paints. The metal surface options include galvanized steel sheets, 304 stainless steel, aluminum-magnesium-manganese sheets, and aluminum plates, offering excellent corrosion resistance, acid resistance, burst resistance, high-temperature resistance, and superior aging performance. The core materials are flame-retardant rated Class A or higher, ensuring no melting or high-temperature decomposition drips during combustion. These materials are environmentally friendly, non-toxic, and pollution-free. The panels provide outstanding characteristics such as thermal insulation, waterproofing, corrosion resistance, high mechanical strength, stable performance, fire resistance, heat insulation, impact resistance, and seismic resilience. Additionally, their lightweight design and interlocking structure facilitate faster installation and reduce costs.
Specifications

Effective width: 1150mm,950mm

Thickness: 50mm、75mm、100mm、125mm、150mm、175mm、200mm or customized

Length: It can be made as user’s requirement(normal≤6000mm)

Applicable core material: With silica rock as filling material,fire a2 level.

Silica rock Density: 80kg/m³ or customized

Surface metal: can be selected from galvanized steel sheets, stainless steel sheets, aluminum alloy sheets, aluminum-magnesium-manganese sheets, or inorganic pre-coated boards. And the surface treatment options include advanced polyester resin, fluorocarbon resin, high weather-resistant resin, and other baked enamel finishes.

Product color: Grey,ivory white,navy,blue dream,but any custom color according to customer’s requirements.

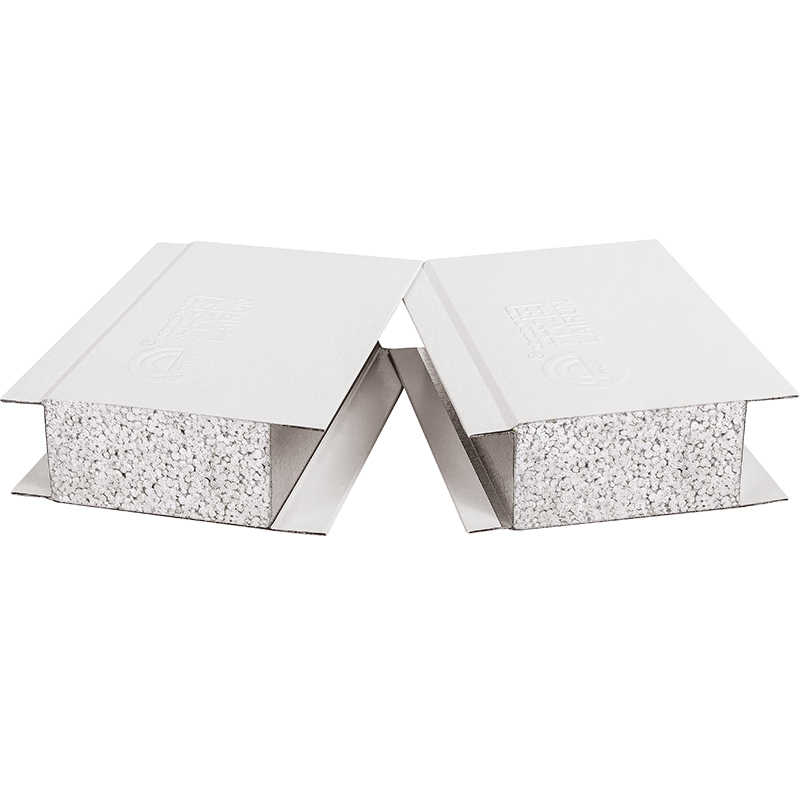

Mounting structure: Tongue and groove jointing

Product performance: Rust,scrub resistance,acid and alkali resistance,fire prevention,sound insulation, thermal insulation and other performance.
